Nexlock

Nexlock

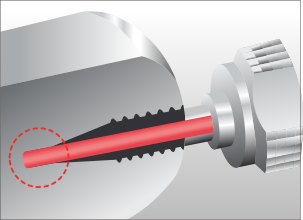

Nexlock is a re-usable finger-tight fitting that is easy to use, and provides excellent pressure capacity, and durability. The fitting and tube combination ensures proper sealing to achieve a zero dead volume connection, thus minimizing peak broadening and tailing. It withstands pressures up to 130 MPa without the use of tools.

Nexlock Features

Minimized dispersion


Reusable up to 100 times

 - Tubes can be connected and disconnected 100 times

Compatible with UHPLC

- Working pressures up to 19.000 psi

Product Specification

Pressure capacity 130 MPa (~19.000 psi)
Fitting Screw: No. 10-32 UNF
Material: SUS316L, can be removed from tube
Wetted materials Tube inner surface: SUS316L
Tip: PEEK

Ordering Information

Desription P/N Tube Length (mm) I.D. (mm) Remarks
Tubing and fitting set 228-62544-14 200 100
228-62544-12 300
228-62544-11 600
228-62544-13 800
228-52597-48 with preheat block for CTO-30A
Tube only (for maintnenace) 228-62544-64 200
228-62544-62 300
228-62544-61 600
228-62544-63 800
228-52597-49 800 with preheat block for CTO-30A
Fitting only (for maintenance) 228-62544-90 - - can be used with all Nexlock tubing
