SH-I-5HT

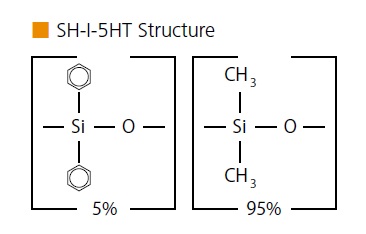

Low-polarity phase: Crossbond™ 5% diphenyl / 95% dimethyl polysiloxane
40% longer lifetime from specially designed fused silica tubing.
Columns processed for high-temperature applications, such as mineral oil.
Similar phases: Rxi-5HT, DB-5HT, VF-5HT, HT-5, ZB-5HTinferno

P/N	ID	df (Film Thickness)	Length	Temp. Range
221-75933-15	0.25 mm	0.10 μm	15 m	-60 to 400°C
227-36091-01	0.25 mm	0.10 μm	30 m	-60 to 400°C
227-36092-01	0.25 mm	0.25 μm	15 m	-60 to 400°C
221-75934-30	0.25 mm	0.25 μm	30 m	-60 to 400°C
227-36093-01	0.32 mm	0.10 μm	15 m	-60 to 400°C
227-36093-02	0.32 mm	0.10 μm	30 m	-60 to 400°C
227-36094-01	0.32 mm	0.25 μm	30 m	-60 to 400°C
227-36095-01	0.53 mm	0.15 μm	30 m	-60 to 380/400°C
