MALDI-8020

A compact footprint without compromising on performance

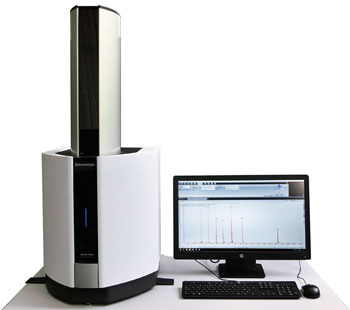

The MALDI-8020 is the latest in a long line of MALDI-TOF products from Shimadzu. This benchtop, linear MALDI-TOF mass spectrometer delivers outstanding performance in a compact footprint, making it an ideal choice for today’s increasingly demanding laboratories.

Key features:
- Linear mode (positive ion) MALDI-TOF
- 200 Hz solid-state laser, 355 nm
- Load-lock chamber for fast sample introduction
- UV laser-based source cleaning (patented)
- Small footprint/benchtop design
- Quiet operation (<55 dB)







Example of a 4.2 kDa peptide demonstrating an average resolution of >5000 FWHM. Resolution, calculated by the software, is shown in brackets.

Linear mode instruments have traditionally been the instruments of choice in MALDI-TOF-based quality control (QC) and profiling workflows, and the MALDI-8020 is no exception. Peptides, proteins, polymers or oligonucleotides - the instrument is capable of delivering the performance required for QC applications. Research laboratories will also benefit from the MS capabilities of the instrument through the rapid mass-measurement of samples.

* For Research Use Only. Not for use in diagnostic procedures.
